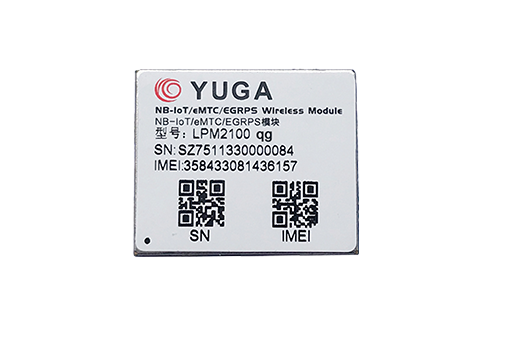

LPM2100 qg

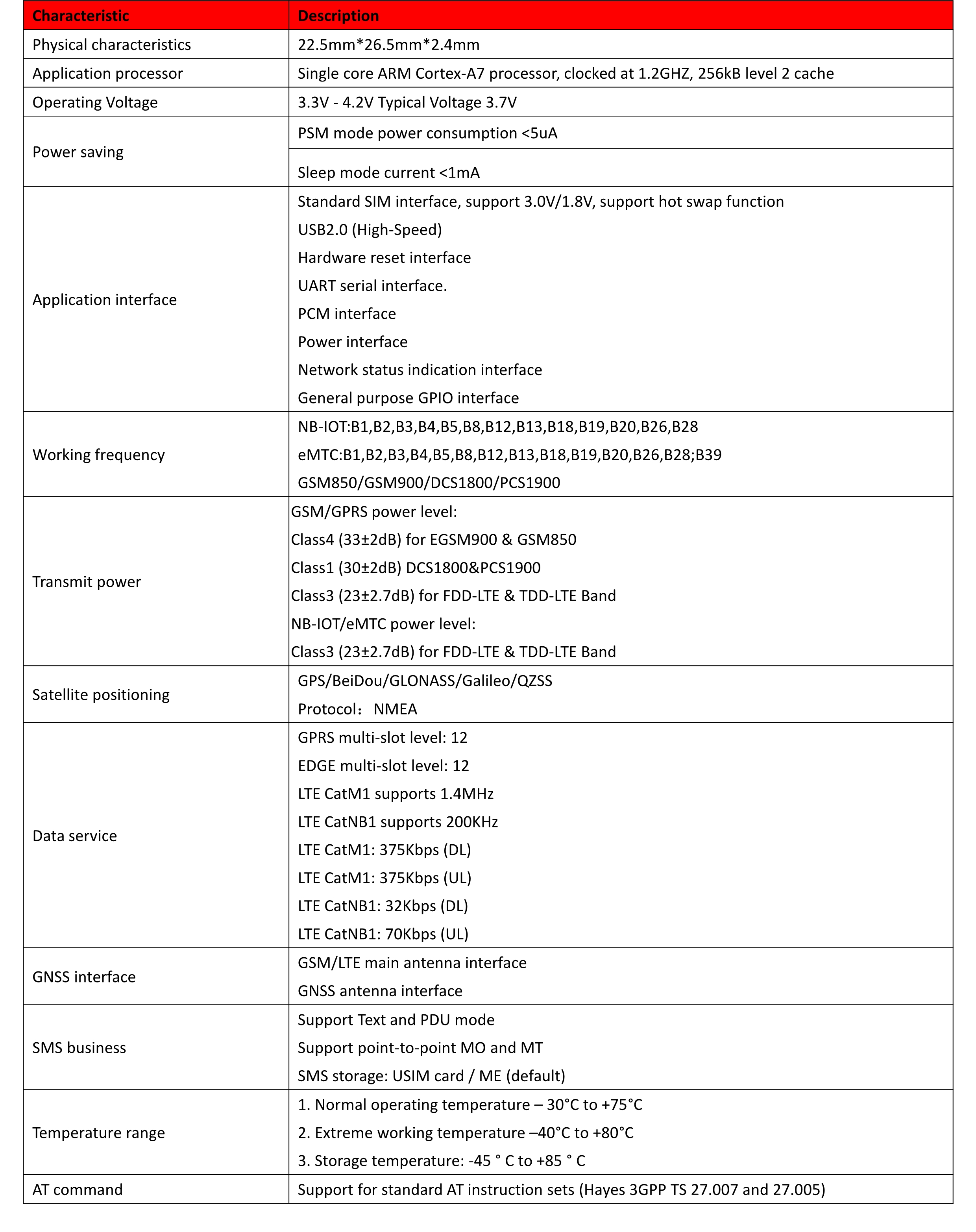

The LPM2100 qg module is an IoT wireless communication module that supports eMTC/NB-IOT/EGPRS. It is packaged in LGA and has a total of 102 pins. The module has a structure size of 22.5mm*26.5mm*2.4mm. The LPM2100 qg integrates a multi-constellation GNSS receiver that supports the GPS/GLONASS/BeiDou/Galileo/QZSS positioning system.
400-900-8899
Manual Download |
LPM2100 qg NB Module Hardware Manual |
LPM2100_AT_Commands_Manual |
Driver Download |
LPM2100 qg windowns driver |
